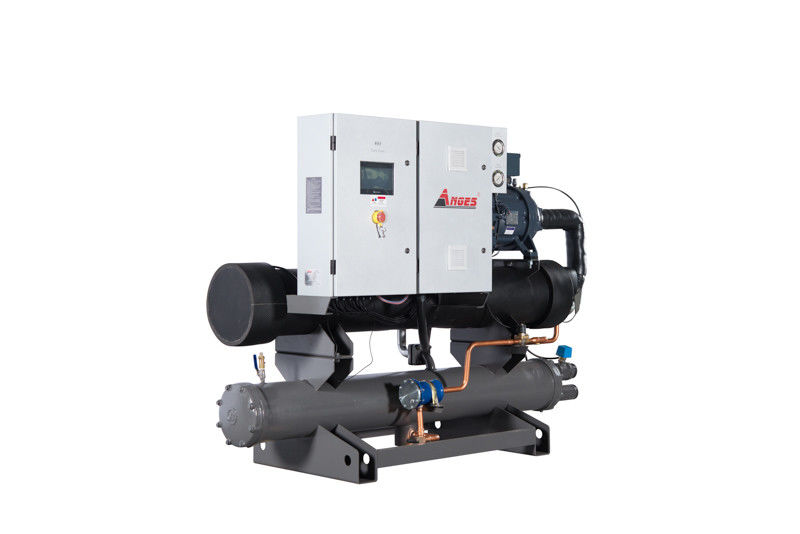

60hp Water-cooled Screw Type Chiller Use For Plastic Machine

60hp Water-cooled Screw Type Chiller Use For Plastic Machine

Lugar de origen:

China

Nombre de la marca:

ANGES

Número de modelo:

100HP

Éntrenos en contacto con
Pida una cita
Detalles del producto
Compresor:
Hanbel
válvula de expansión:
¿ Qué pasa?
Condensador:
ÁNGELES
Evaporador:
ÁNGELES
Válvula de solenoide:
¿ Qué pasa?
Filtro de secado:
¿ Qué pasa?
Indicador de presión de aceite:
REFCO
Pantalla táctil:
WEINTEK
Controlador PLC:
Las empresas Siemens
Componentes eléctricos:
El Sr. Schneider
El FAN:
Nangbeng
Pago y términos de envío
Cantidad de orden mínima
1
Detalles de empaquetado
Caja de madera contrachapada
Tiempo de entrega
30 días
Condiciones de pago
T/T, L/C
Descripción de producto

60hp Water-cooled  Screw Type Chiller Use For Plastic Machine


Water-cooled screw chillers help plastic factories improve production efficiency, reduce overall costs, and ensure product quality through their advantages of efficient refrigeration, energy saving and consumption reduction, and precise temperature control.



They are especially suitable for medium and large-scale continuous production scenarios.


Water-cooled  Screw Type Chiller Specification

Model

Parameter

AGS-060WSH
Nominal cooling capacity Kcal/h 176300
  kw 205
Input power kw 42.9
Max. Running current A 97.8
Power supply 3PH~380V/50HZ
Refrigerant Type R22
  Type of control Expansion valve
Compressor Type Semi-hermetic screw
  Power(kw) 42.9
  Start-up mode Y-△
  Capacity control 0-25-50-75-100
Evaporator Type Shell and tube
  Chilled fluid flow (m3/h) 34.7
  Inlet and outlet pipe diameter (inch) 3
Condenser Type Shell and tube
  cooling water flow (m3/h) 42
  pipe diameter (inch) 3
Safety protection compressor over temperature, unit overload, high and low pressure, flow switch, phase sequence, phase-missing, anti-freezing
Net weight kg 1120
Dimension mm 2515*985*1727






Water-cooled screw chillers have significant advantages in cooling applications in plastic factories. The following are its core benefits and specific analysis:



1. Efficient refrigeration to meet continuous production needs


Large cooling output: The screw compressor has high efficiency and is suitable for the high-intensity heat dissipation requirements of injection molding machines, extruders and other equipment in plastic factories, ensuring rapid cooling and molding.

Stable operation: The screw structure design is wear-resistant and can operate continuously for 24 hours to avoid production interruptions or product deformation caused by insufficient cooling.



2. Energy saving and consumption reduction, reducing operating costs


High energy efficiency ratio (COP): The water cooling system is 30%-50% more efficient than the air cooling system, especially in high temperature environments, saving electricity bills in the long term.

Excellent partial load performance: Using multi-stage or stepless adjustment technology, it automatically reduces energy consumption at low loads to adapt to production fluctuations in plastic production.



3. Accurate temperature control to improve product quality


Small temperature fluctuations: Ensure uniform cooling of plastic products, reduce defects such as shrinkage and warping caused by temperature differences, and improve product qualification rate.

Quick response to load changes: Dynamically adjust the cooling capacity to adapt to different mold switching or production rhythm changes.



4. Adapt to complex industrial environments


High temperature resistant conditions: The water cooling system has high heat dissipation efficiency and can operate stably in the high temperature environment of the workshop (air cooling is easily affected by ambient temperature).

Long life design: The life of the screw compressor can reach more than 15 years, reducing the frequency of equipment replacement, suitable for heavy industrial scenarios.



When using the chiller, please pay attention to the following:

  1. Electrical safety: Always turn off the power before operation and maintenance, and only qualified electricians should be responsible for the operation. Pay attention to high-voltage components.
  2. Mechanical safety: Pay attention to rotating parts (fans, water pumps). Avoid damaging the fins when cleaning.
  3. Refrigerant safety: Refrigerants are under pressure and may be flammable or toxic. Filling and recycling must be performed by certified professionals to avoid leakage. It is prohibited to leak large amounts of refrigerant in confined spaces.
  4. Antifreeze: When the ambient temperature may be below freezing and the equipment is not in operation, the water in the system must be completely drained, otherwise the pipes, water tanks and heat exchangers will freeze and crack, causing serious damage.
  1.
