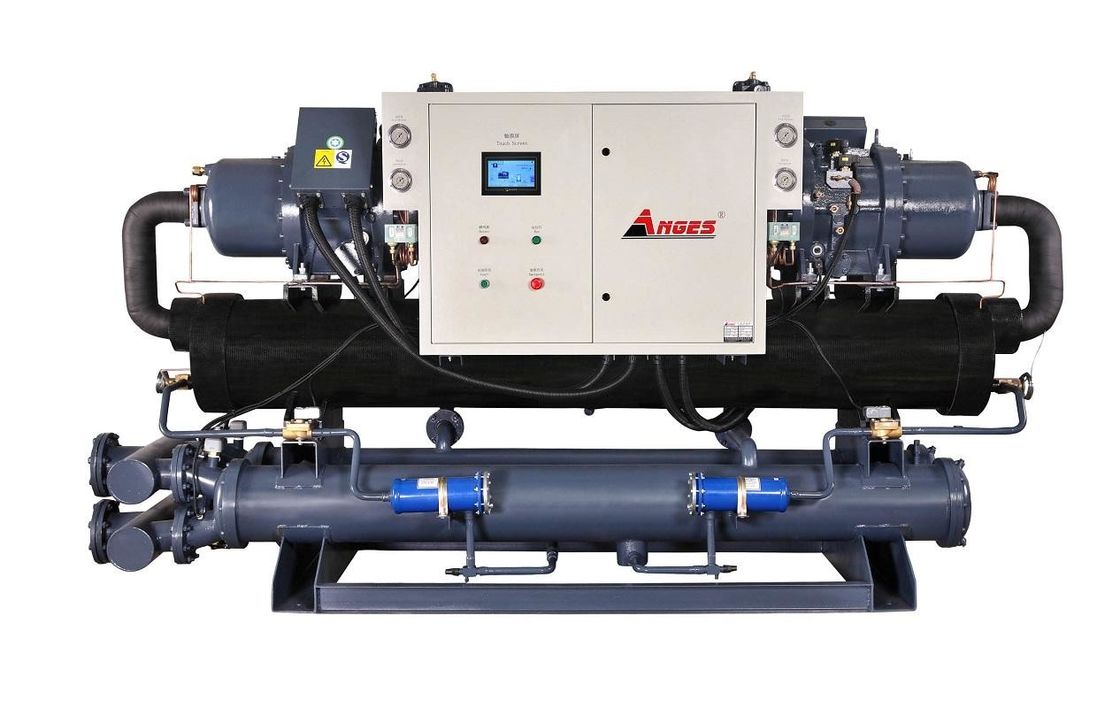

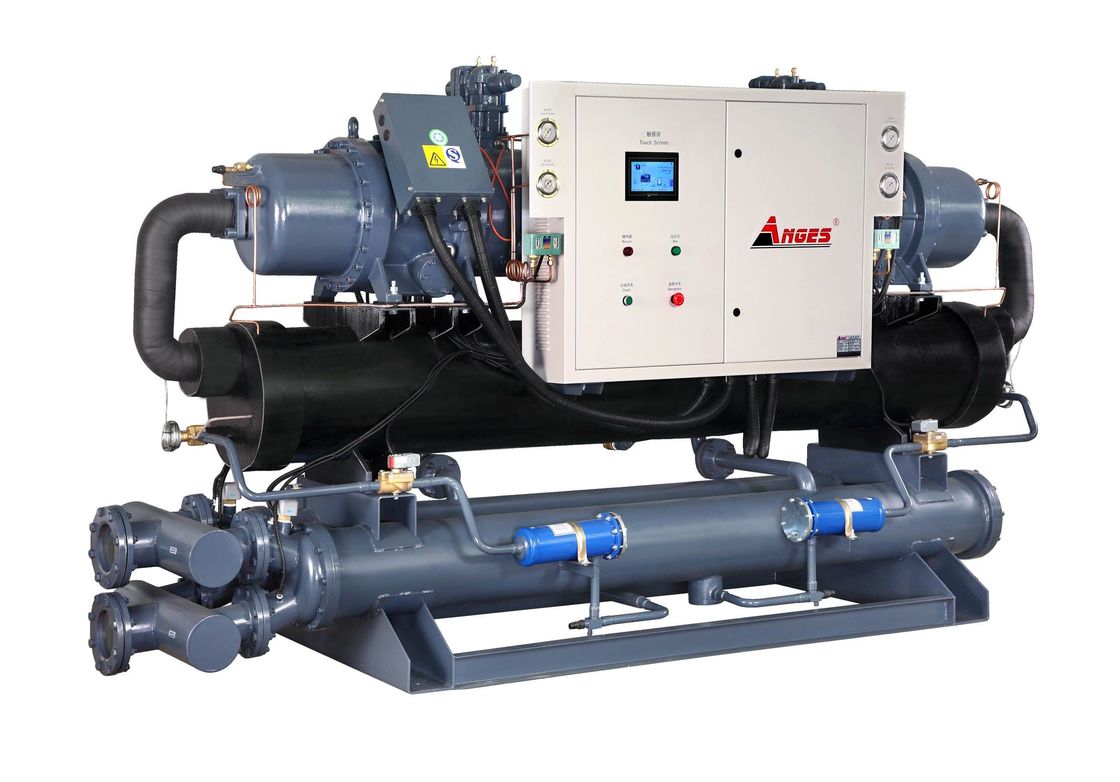

Factory-Direct 240HP Water-Cooled Screw Chiller - Cost-Effective Cooling Solution
Product OverviewThe 240HP water-cooled screw chiller is a high-performance cooling device specifically designed for industrial and commercial applications. This equipment stands out with its powerful cooling capacity, energy-efficient operation, stabe and reliable performance, as well as intelligent control system. Through the factory-direct sales model, we offer customers highly competitive prices while ensuring product quality and comprehensive after-sales service, making it the ideal choice for various large-scale cooling requirements.
Working Principle
The refrigeration cycle of the water-cooled screw chiller is based on the reverse Carnot cycle principle. The compressor compresses the low-temperature and low-pressure refrigerant gas into a high-temperature and high-pressure gas, which is then sent to the condenser. In the condenser, the high-temperature and high-pressure refrigerant gas releases heat to the external environment through the circulation of cooling water and condenses into a high-pressure liquid. After the high-pressure liquid is decompressed by the throttling device, it enters the evaporator. Inside the evaporator, the low-pressure liquid refrigerant absorbs the heat of the chilled water, evaporates into a low-temperature and low-pressure gas, thus reducing the temperature of the chilled water. The low-temperature and low-pressure refrigerant gas is then sucked back into the compressor, starting a new round of the refrigeration cycle. This continuous cycle ensures stable and consistent cooling performance.
Core Advantages
1. High Efficiency and Energy Saving, Reducing Operating Costs
Equipped with a high-efficiency semi-hermetic twin screw compressor and an advanced intelligent control system, it can automatically adjust the cooling capacity according to the actual load. The part-load energy efficiency ratio (IPLV) reaches up to 4.5, saving more than 30% energy compared to traditional models and significantly reducing long-term operating costs.
2. Stable, Reliable, and Long Service Life
The compressor rotor features a 5:6 asymmetric tooth profile design, combined with high-precision machining technology to reduce friction loss. Additionally, it is equipped with multiple protection devices, such as high-pressure protection, low-pressure protection, and overload protection, ensuring stable operation under complex working conditions and a service life of over 15 years.
3. Factory Direct Sales, Excellent Cost-effectiveness
As a factory-direct product, it eliminates intermediate circulation links, directly benefiting customers. With the same configuration, the price is 15%-20% lower than similar products in the market, while ensuring product quality and after-sales service, truly achieving high cost-effectiveness.
4. Intelligent Control, Easy Operation
Fitted with a PLC intelligent control system, it enables remote monitoring and automated management. Users can view real-time operating parameters, fault alarm information, and perform parameter settings through the touch screen. The operation is simple and intuitive, effectively reducing manual management costs.
Technical Specifications
|
Item
|
Parameters
|
|
Cooling Capacity
|
240HP (875.8kW)
|
|
Input Power
|
176.6kW (full load)
|
|
Cooling Method
|
Water-cooled
|
|
Temperature Range
|
-5℃~35℃ (customizable)
|
|
Water Flow Rate
|
150.6m³/h
|
|
Compressor Brand
|
Hanbell/Bitzer (optional)
|
|
Noise Level
|
≤75dB(A)
|
|
Dimensions (L×W×H)
|
3850×1320×2150mm
|
|
Weight
|
3920kg
|
Typical Applications
1.Industrial Manufacturing
Widely used in industries such as plastic processing, electronic chip manufacturing, chemical pharmaceuticals, and food freezing, it provides stable low-temperature cooling water for production equipment, ensuring smooth process flow, and improving product quality and production efficiency.
2.Commercial Buildings
Suitable for central air conditioning systems in large shopping malls, office buildings, hotels, etc., it provides a comfortable cooling effect for indoor environments and meets the constant temperature requirements of large-scale spaces.
3.Data Centers and Laboratories
It provides precise and stable cooling for server heat dissipation in data centers and temperature control of precision instruments in laboratories, ensuring the normal operation of equipment and the accuracy of experimental data.
Customization Services
▶ Optional Upgrades:
- Explosion-proof design (ATEX certified)
- Ultra-low temperature version (-30℃~5℃)
- Stainless steel tank/pump (corrosion-resistant)
- Multi-unit parallel systems (scalable)
▶ After-Sales Support:
- 1-year warranty for whole unit, 1-year compressor warranty
- 48h rapid response, nationwide service network
- Free operator training + lifetime technical support
Application Cases
Case 1: An Electronic Chip Manufacturing Enterprise
- Requirement: Provide stable low-temperature cooling for precision equipment such as lithography machines and etching machines on the chip production line, ensuring that the temperature fluctuation of the production environment does not exceed ±0.5℃.
- Solution: Two 240HP water-cooled screw chillers are operated in parallel, combined with an intelligent control system to achieve redundant backup and precise temperature control.
- Effect: The equipment operates stably, the production yield rate is increased to over 98%, and the annual electricity cost is saved by approximately 300,000 yuan.
Case 2: A Large Commercial Complex
- Requirement: Provide cooling for the central air conditioning system of the shopping mall to meet the high-load cooling demand during peak summer hours while reducing energy consumption costs.
- Solution: Three 240HP water-cooled screw chillers are installed, combined with a group control system to automatically adjust the number of operating units according to the real-time load.
- Effect: The summer air conditioning operating cost is reduced by 25%, the indoor temperature is uniform and comfortable, and customer satisfaction is significantly improved.
